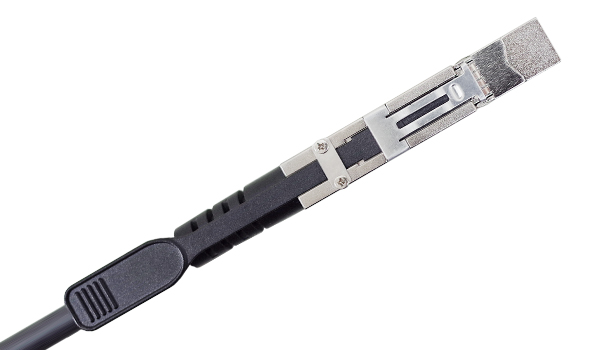

Description:ConnPro Slim SAS HD 3.0 Passive Copper Cable, 30AWG, L=1~3M

- SFF8644-SFF8644 Mini SAS HD 3.0 Cable Assembly
- Fully Compliant to SFF-8644 MSA Standard
- Maximum data transmission up to 12Gbps per channel
- Maximum total data transmission up to 48Gbps per cable
- Slim and low profile connector design for high density application
- Support PCI-E 3.0 Application
Part Number:RS3D5TD5TXXXX1
Downloads:
Product Specification
Datasheet
Description:ConnPro Slim SAS HD 3.0 Passive Copper Cable, 28AWG, L=3~10M

- SFF8644-SFF8644 Mini SAS HD 3.0 Cable Assembly
- Fully Compliant to SFF-8644 MSA Standard
- Maximum data transmission up to 12Gbps per channel
- Maximum total data transmission up to 48Gbps per cable
- Slim and low profile connector design for high density application
- Support PCI-E 3.0 Application
Part Number:RS3D5TD5TXXXX2
Downloads:
Product Specification
Datasheet
Description:ConnPro Slim SAS HD Active Optical Cable (AOC)

ConnPro Slim-SAS HD AOC is compliant with SFF-8644 MSA with mechanical requirement, whose reduced size of connector provides premium board space for implementing more I/O ports. The single land speed is up to 12-Gbps to fulfill SAS-3 standard, also backward to fully compliant with SAS-2.1 of 6-Gbps land speed.
Part Number:AS35D5D5LXXX01
Downloads:
Product Specification
Datasheet
Description:ConnPro High Speed Slim SAS HD 4X Active Cables are designed for data centers, networking and HPC (High Performance Computing) applications. Conforming to SFF-8644 Mechanical requirement.

Attached AEQ module support customized adjustment, ConnPro Active cable can easily fit different high speed transmission environment.
Part Number:RS3D5TDXXXXXXX
Downloads:
Product Introduction
Description:ConnPro Slim SAS HD 4.0 Passive Copper Cable, 28AWG, L=1-6M

- SFF8644-SFF8644 Mini SAS HD 4.0 Cable Assembly
- Fully Compliant to SFF-8644 MSA Standard
- Maximum data transmission up to 24Gbps per channel
- Maximum total data transmission up to 96Gbps per cable
- Slim and low profile connector design for high density application
- Support PCI-E 4.0 Application
Part Number:RS4D5TD5TXXXXX
Downloads:
Product Specification
