Electrical Engineering

With constant testing environment upgrade supported by engineering team, ConnPro is always following latest standards and develops new products for customers.



Mechanical Engineering

With professional molding technology and designing ability, ConnPro team is able to meet customers' requirements on its own connectivity design.

‧ Mechanical Software: AutoCAD 2010, Solidwork

‧ PCB Design Software

‧ Field Solver Software, Model Si6000b

‧ Protel 99SE ‧ Agilent Advanced Design System (ADS)

‧ Momentum 3D Planar EM Simulator

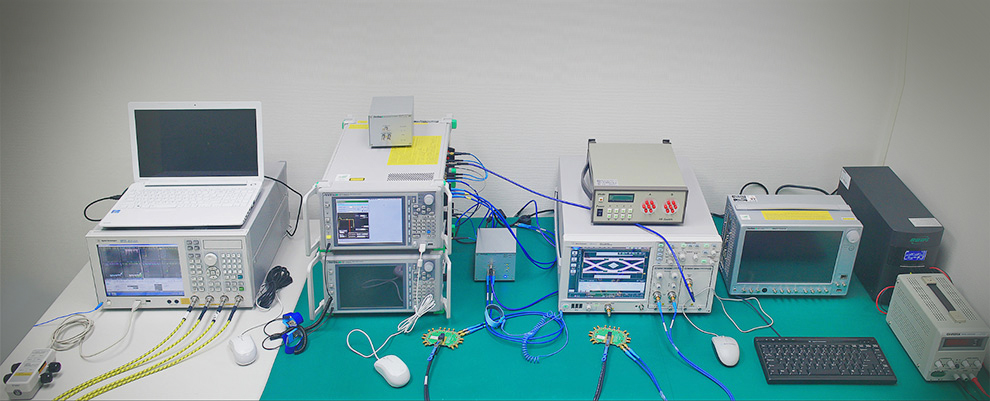

Testing Capabilities

‧ SAS-1 / SAS-3 / SAS-3

‧ SATA-1 / SATA-3 / SATA-3

‧ IBTA- SDR, DDR , QDR , FDR , EDR

‧ PCIE 1.0 , 2.0 , 3.0 •USB3.0 , HDMI 1.4

‧ SFF8431 SFP+ •IEEE 10G/40G/100G Ethernet

‧ Cable / Connector Impedance

‧ Differential S-parameter

‧ Bit Error Rate / Eye Diagram

‧ 8 Channel END To END Simulation

‧ Active Cable Eye Diagram / Stressed Eye Diagram

‧ EEPROM Programming

‧ 4 Taps De-emphasis For Passive Channel

‧ Dfe / Ctle Signal Equalization

‧ 8Channel Auto Switch And Auto Test Software

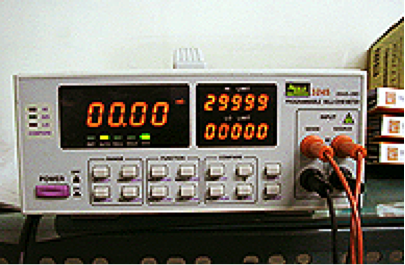

  • Voltage Withstanding Tester

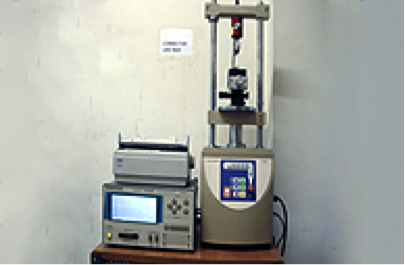

  • Push & Pull Cycling Tester

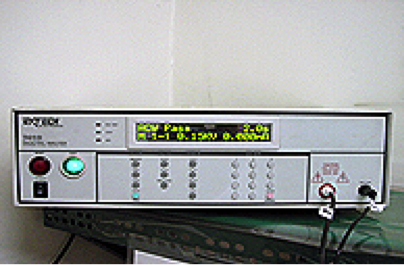

  • Oscillator Scope Tester

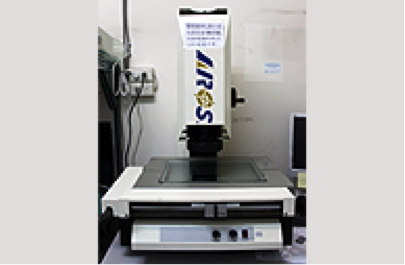

  • Field Vision Measuring System
